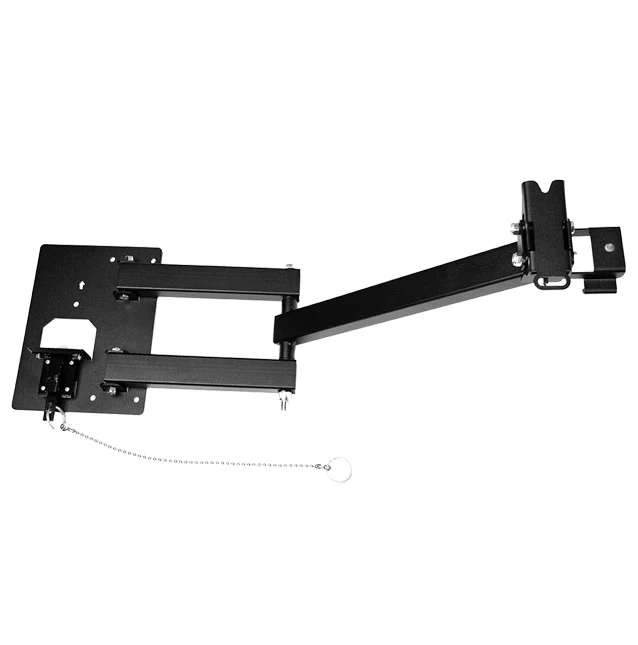

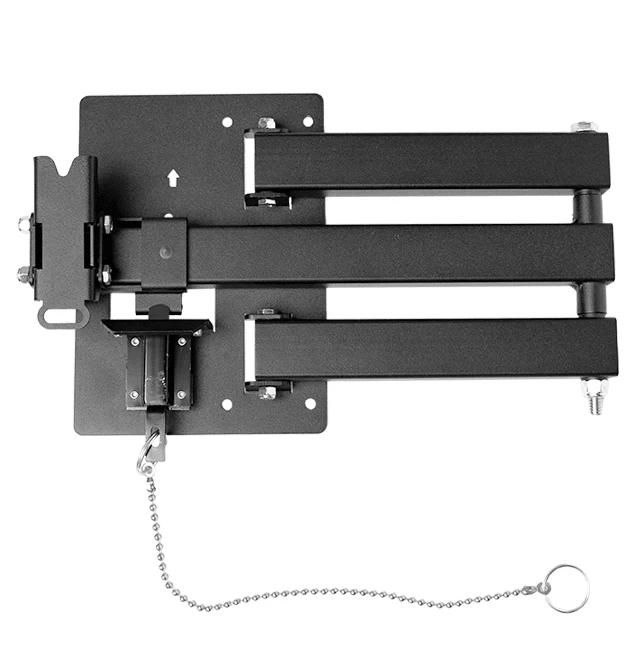

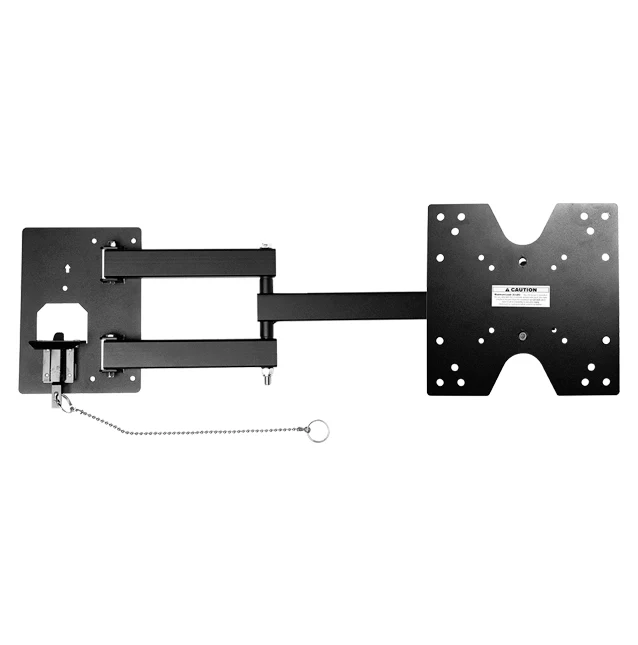

Swinging TV Mount

This wall-mount swinging TV mount gives you a full range of viewing options in your RV. The double-joint arm design lets you bring the TV out from the wall, then swivel and tilt it into place.

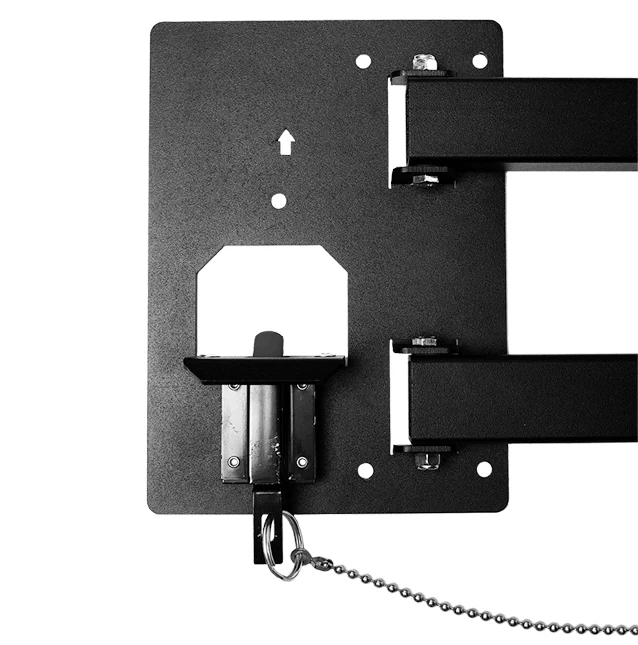

A spring latch holds the mount secure in the closed position and locks it in for safe travel.

Features

• Wall-mount swinging design
• Tilts ±8° forward and backward
• Tilts ±5° side to side
• 24" extension
• TV swivels up to 360°
• Up to 200 x 200 VESA
• Spring latch holds mount secure in closed position
• Locks in for safe travel
• 35 lb. weight capacity

Dimensions

• Closed: 18.288"W x 9.75"H x 2.625"D
• Open: 9.5"W x 9.75"H x 24"D

Catalog note: MORryde also references a double-joint arm on this mount family. To avoid conflicting measurements, the specs above reflect the verified 24" extension and the exact published closed/open dimensions for TV1-123H.
