MORryde - STP-215 StepAbove Flip Tread 4-Step RV Entry Steps - Innovative Folding Design for Maximum Ground Clearance
MORryde - STP-215 StepAbove Flip Tread 4-Step RV Entry Steps - Innovative Folding Design for Maximum Ground Clearance
Eliminate ground clearance concerns and step damage with the MORryde STP-215 StepAbove Flip Tread 4-Step RV Entry System, featuring revolutionary flip-up treads that provide maximum clearance when traveling while delivering safe, stable access when deployed. This premium entry step system combines heavy-duty construction with innovative engineering for the ultimate in RV entry convenience and protection.
Features & Specifications
- Flip Tread Design: Each step folds up independently for maximum ground clearance during travel
- 4-Step Configuration: Ideal for higher RV entry heights and comfortable access
- Heavy-Duty Steel Construction: Premium materials engineered for years of reliable service
- Corrosion-Resistant Finish: Durable powder-coat protects against weather and road elements
- Wide Stable Treads: Generous step width provides secure footing for safe entry and exit
- Easy Operation: Simple flip-down deployment and flip-up storage mechanism
- Prevents Damage: Eliminates dragging, scraping, and step damage on uneven terrain
Why Choose MORryde STP-215 Flip Tread Steps?
The STP-215 solves the most common RV entry step problems with innovative flip tread technology. Traditional fixed steps often drag on uneven terrain, get damaged by road debris, or limit your ability to navigate steep driveways and off-road camping sites. The flip tread design eliminates these issues by allowing each step to fold up when not in use, providing maximum ground clearance for travel while maintaining the stability and safety of a full 4-step system when deployed. This innovative system is perfect for RVers who frequently travel on varied terrain, need maximum ground clearance, or want to extend the life of their entry step system by preventing damage.
Compare MORryde RV Entry Step Systems
Choosing the right entry step system depends on your RV door height, mounting preference, and whether you need ground clearance features. Compare the STP-215 flip tread system with other popular MORryde step configurations:
| Model | Steps | Design Type | Best For | View Details |
|---|---|---|---|---|
| STP-215 | 4 | Flip Tread | Maximum ground clearance, preventing step damage, uneven terrain travel | Current Product |
| STP-214 | 4 | Strut Assist | Easy lifting with gas struts, 30" door width, reduced effort operation | View STP-214 |
| STP-225 | 4 | Top Mounted Patio | Patio door access, high entry heights, top mount installation | View STP-225 |
| STP-210 | 3 | Strut Assist | Medium entry heights, 30" door width, gas strut assistance | View STP-210 |
Pro Tip: Measure your RV entry height from the ground to the door threshold before selecting a step system. 4-step systems like the STP-215 are ideal for entry heights of 30" or more, while 3-step systems work well for 20-28" heights.

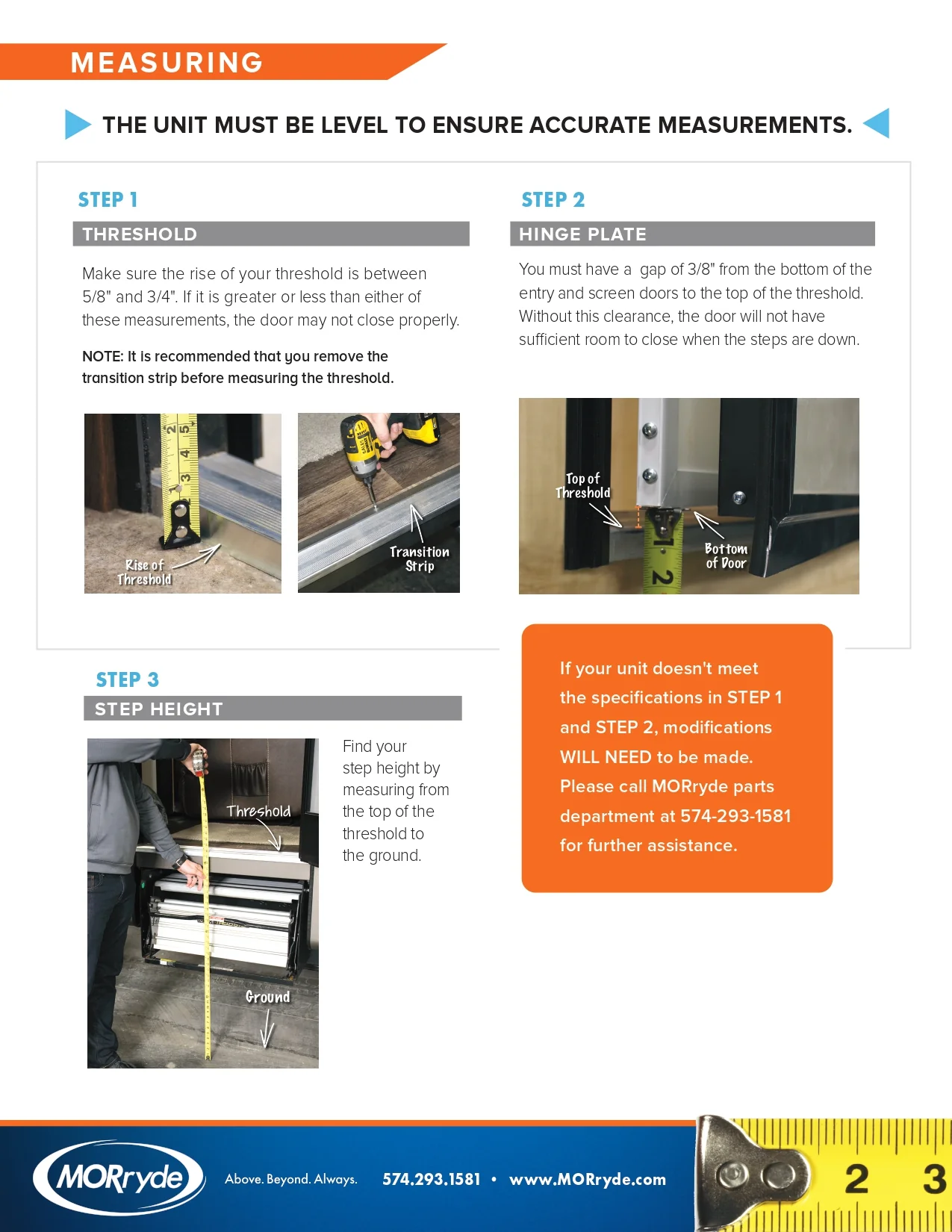

Installation & Measuring Guide - Critical Requirements
Step 1: Threshold Measurement
Make sure the rise of your threshold is between 5/8" and 3/4". If it is greater or less than either of these measurements, the door may not close properly.
NOTE: It is recommended that you remove the transition strip before measuring the threshold.
Step 2: Hinge Plate Clearance
You must have a gap of 3/8" from the bottom of the entry and screen doors to the top of the threshold. Without this clearance, the door will not have sufficient room to close when the steps are down.
Step 3: Step Height Measurement
Find your step height by measuring from the top of the threshold to the ground. This measurement determines which flip tread step model is right for your RV.

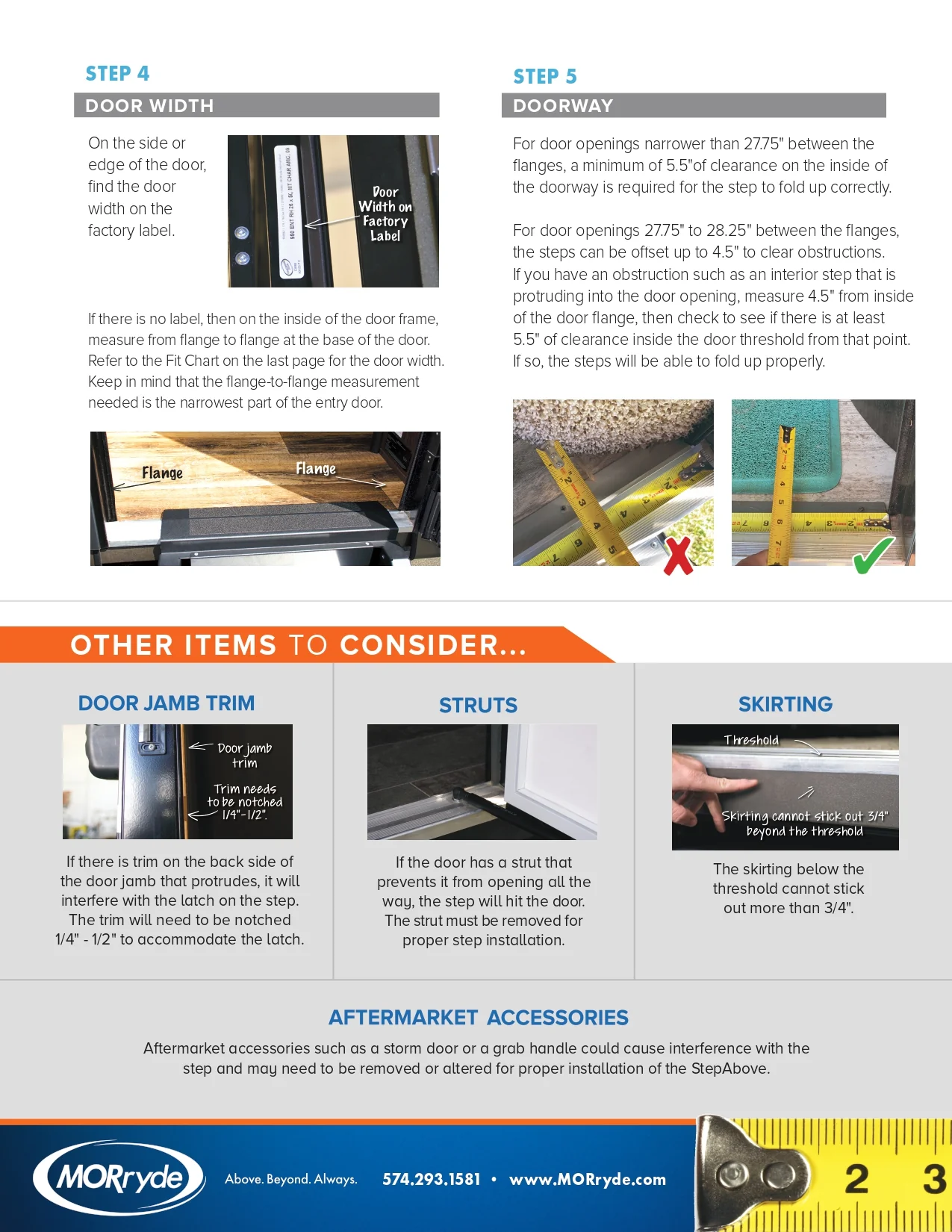

Step 4: Door Width Measurement
On the side or edge of the door, find the door width on the factory label. If there is no label, then on the inside of the door frame, measure from flange to flange at the base of the entry door. Refer to the Fit Chart for the door width. Keep in mind that the flange-to-flange measurement needed is the narrowest part of the entry door.
Step 5: Doorway Clearance
For door openings narrower than 27.75" between the flanges, a minimum of 5.5" of clearance on the inside of the doorway is required for the step to fold up correctly.
For door openings 27.75" to 28.25" between the flanges, the steps can be offset up to 4.5" to clear obstructions. If you have an obstruction such as an interior step that is protruding into the door opening, measure 4.5" from inside of the door flange, then check to see if there is at least 5.5" of clearance inside the door threshold from that point. If so, the steps will be able to fold up properly.
Other Items to Consider
Door Jamb Trim: If there is trim on the back side of the door jamb that protrudes, it will interfere with the latch on the step. The trim will need to be notched 1/4" - 1/2" to accommodate the latch.
Struts: If the door has a strut that prevents it from opening all the way, the step will hit the door. The strut must be removed for proper step installation.
Skirting: The skirting below the threshold cannot stick out more than 3/4" beyond the threshold.
Aftermarket Accessories: Aftermarket accessories such as a storm door or a grab handle could cause interference with the step and may need to be removed or altered for proper installation of the StepAbove.

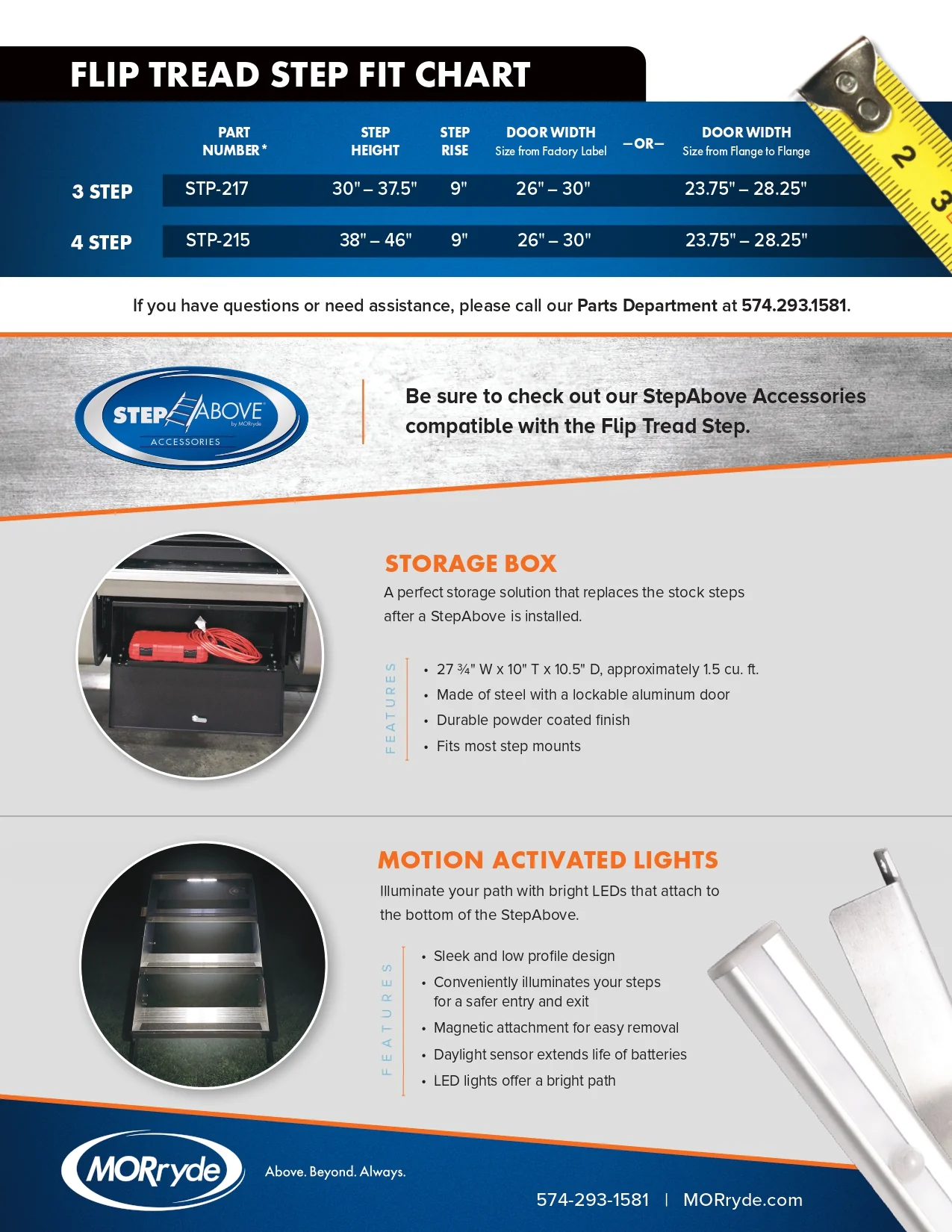

Flip Tread Step Fit Chart
| Configuration | Part Number | Step Height | Step Rise | Door Width (Factory Label) | Door Width (Flange to Flange) |
|---|---|---|---|---|---|
| 3 Step | STP-217 | 30" - 37.5" | 9" | 26" - 30" | 23.75" - 28.25" |
| 4 Step | STP-215 | 38" - 46" | 9" | 26" - 30" | 23.75" - 28.25" |
Need assistance with measurements? If you have questions or need help determining the right step configuration, please call MORryde Parts Department at 574.293.1581.
StepAbove Accessories Compatible with Flip Tread Steps
Enhance your flip tread step system with these premium MORryde accessories:
- Storage Box: A perfect storage solution that replaces the stock steps after a StepAbove is installed. 27.75" W x 10" T x 10.5" D, approximately 1.5 cu. ft. Made of steel with a lockable aluminum door and durable powder coated finish. Fits most step mounts.
- Motion Activated Lights: Illuminate your path with bright LEDs that attach to the bottom of the StepAbove. Sleek and low profile design, conveniently illuminates your steps for a safer entry and exit. Magnetic attachment for easy removal, daylight sensor extends life of batteries, LED lights offer a bright path.
Technical Specifications
- Part Number: STP-215
- Step Configuration: 4 steps with flip tread design
- Step Height Range: 38" - 46"
- Step Rise: 9"
- Door Width (Factory Label): 26" - 30"
- Door Width (Flange to Flange): 23.75" - 28.25"
- Material: Heavy-duty steel construction
- Finish: Powder-coated for corrosion resistance
- Design Type: Flip-up treads for maximum ground clearance
- Weight: 70 lbs
- Application: RV entry door systems
- Installation: Professional installation recommended
What's Included
- MORryde STP-215 StepAbove Flip Tread 4-Step System
- Mounting hardware and installation components
- MORryde manufacturer warranty
- Installation instructions and documentation
Compatible Models & Alternatives
The STP-215 flip tread system is designed for RV entry door applications requiring maximum ground clearance. For different configurations, explore the STP-214 Strut Assist 4-Step with gas strut assistance, the STP-222 Removable 2-Step for portable applications, or browse our complete MORryde Steps Collection. Enhance your step system with the STP214-006H Handrail for added safety and support.
Frequently Asked Questions
How do I measure my RV to determine if the STP-215 will fit?
Follow the 5-step measuring process outlined above. The STP-215 is designed for step heights of 38" - 46" (measured from top of threshold to ground), door widths of 26" - 30" (factory label) or 23.75" - 28.25" (flange to flange), and requires specific threshold rise and hinge plate clearance. The unit must be level for accurate measurements.
What if my RV has a strut on the door?
If your door has a strut that prevents it from opening all the way, the step will hit the door. The strut must be removed for proper step installation.
Can I install this if I have door jamb trim?
Yes, but if there is trim on the back side of the door jamb that protrudes, it will interfere with the latch on the step. The trim will need to be notched 1/4" - 1/2" to accommodate the latch.
What's the difference between the STP-215 (4-step) and STP-217 (3-step)?
The STP-215 is designed for higher entry heights of 38" - 46", while the STP-217 is for 30" - 37.5" heights. Both use the same flip tread design and door width specifications, but the 4-step configuration provides an extra step for taller RV entries.
How does the flip tread design prevent step damage?
Each step folds up independently when not in use, providing maximum ground clearance during travel. This eliminates dragging on uneven terrain, prevents damage from road debris, and allows you to navigate steep driveways and off-road camping sites without scraping your steps.
Can I add accessories like storage boxes or lights to the STP-215?
Yes, MORryde offers compatible accessories including under-step storage boxes (27.75" W x 10" T x 10.5" D) and motion-activated LED lights that attach magnetically to the bottom of the StepAbove for safer entry and exit.
Why Buy from Elkhart RV Parts?
As the only authorized retailer for MORryde products, Elkhart RV Parts guarantees 100% authentic OEM grade parts backed by manufacturer warranties. We specialize in premium RV components with expert product knowledge, fast shipping, and dedicated customer support. Our commitment to quality ensures you receive genuine MORryde engineering and the peace of mind that comes with authorized dealer status.
