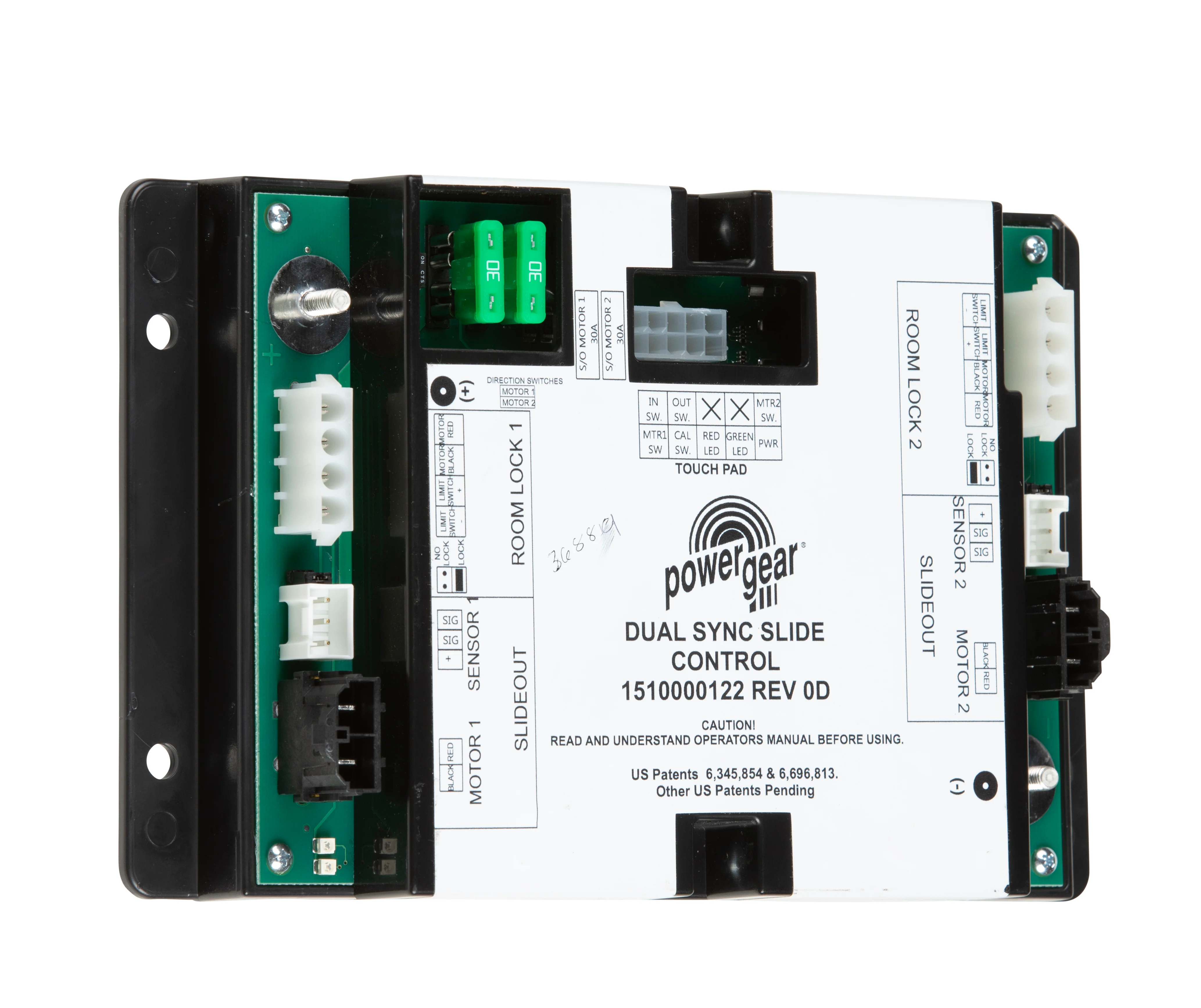

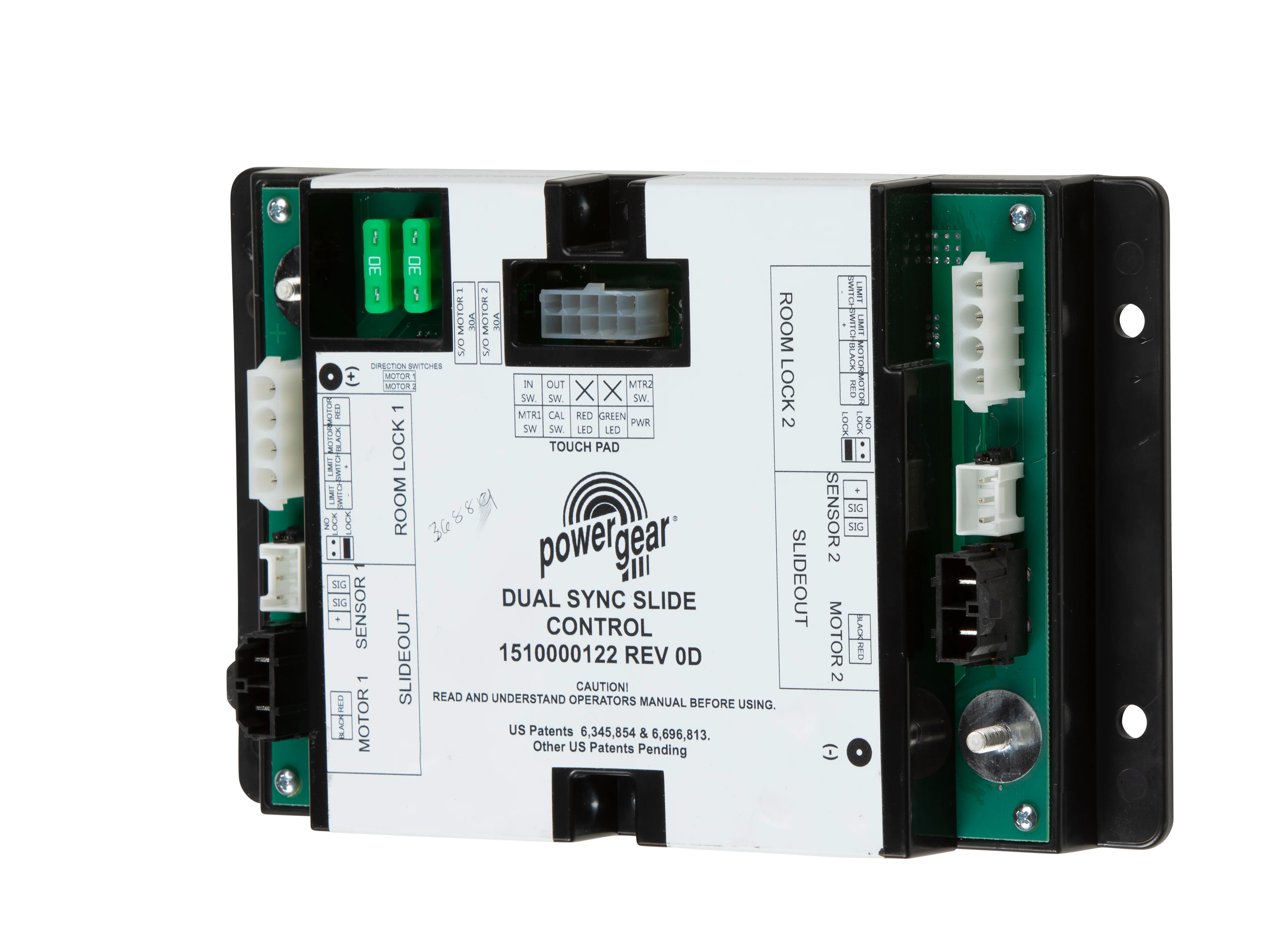

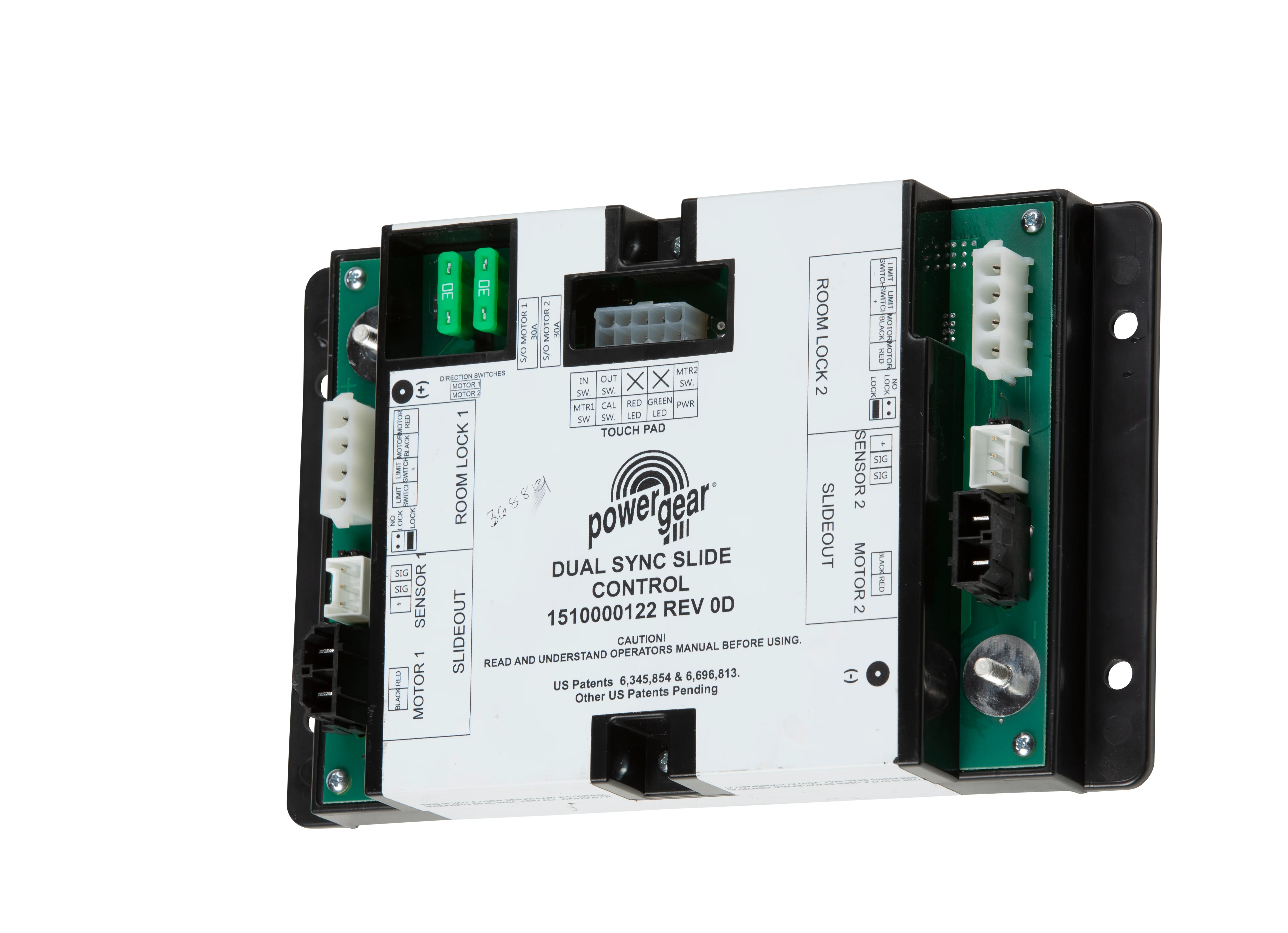

Lippert - Dual Motor Room Slide-Out Control With Programmable Stops & Room Locks - 368819
The Lippert dual motor room slide-out control (#368819, cross-ref: 1510000122) is the OEM-grade replacement controller engineered specifically for RV slide-out systems powered by two motors. Whether your existing control board has failed or you're upgrading for more precise operation, this unit delivers factory-level performance with programmable stops and integrated room locks — restoring full slide-out functionality to your rig.
Features & Specifications
- Dual Motor Control: Manages two slide-out motors simultaneously for synchronized, balanced room extension and retraction
- Programmable Stops: Set custom in/out travel limits for precise positioning — no more over-travel or misalignment
- Integrated Room Locks: Built-in room lock functionality prevents unintended slide movement while parked
- Compact Footprint: 12" L x 8" W x 2" H — fits in tight control bays without modification
- Lightweight Design: 1 lb physical weight; easy single-technician installation
- OEM Lippert Part: SKU 368819 / Cross-ref 1510000122 — direct factory replacement, no adaptation required
- Compatibility: Designed for Lippert dual-motor slide-out systems; verify your existing control board part number before ordering
Why Choose the Lippert Dual Motor Slide-Out Control?
When your RV slide-out stops responding or moves unevenly, the control board is often the culprit. The Lippert dual motor room slide-out control eliminates guesswork — it's the exact OEM replacement engineered for your system. Unlike generic aftermarket boards, this unit is pre-configured for Lippert's dual-motor architecture, meaning no re-wiring, no compatibility headaches, and no voided warranties.
The programmable stop feature is a standout benefit: technicians can dial in precise travel limits to protect slide seals and prevent wall contact. Combined with the room lock function, your slide stays exactly where you put it — whether you're parked for a night or a season. The Lippert dual motor slide control is the professional's choice for reliable, long-term slide-out performance.
Compare RV Slide-Out Controllers
Not sure which Lippert slide control is right for your system? Use this table to compare the dual motor and single motor options side by side.
| Model (Part #) | Motor Type | Dimensions | Weight | Programmable Stops | Room Locks | Best For | View Details |
|---|---|---|---|---|---|---|---|
|
Lippert #368819 Cross-ref: 1510000122 |
Dual Motor | 12" x 8" x 2" | 1 lb | ✓ Yes | ✓ Yes | RVs with two slide-out motors | Current Product |
| Lippert #383703 Cross-ref: 1510000121 |
Single Motor | 6" x 4" x 4" | 1 lb | ✓ Yes | ✓ Yes | RVs with one slide-out motor | View Details |
| Lippert #363987 | 12VDC Reversible Gear Motor | 6" x 4.5" x 4.5" | 0.33 lb | ✓ Yes | — | 12VDC reversible gear motor systems | View Details |
Tip: Always confirm your slide-out system's motor count before ordering. Check your existing control board label or your RV's wiring diagram to identify single vs. dual motor configuration.
Technical Specifications
- Part Number: 368819
- Cross-Reference Part #: 1510000122
- Barcode (UPC): 848150046246
- Dimensions: 12" L x 8" W x 2" H
- Physical Weight: 1 lb
- Dimensional Weight: 1.16 lbs
- Voltage: 12VDC (standard RV electrical system)
- Motor Configuration: Dual motor
- Lippert Category: Slide-Out / Electrical Part
- Condition: New OEM
What's Included
- 1x Lippert Dual Motor Room Slide Control Module (#368819)
- Manufacturer warranty per Lippert's standard terms
- OEM packaging
Compatible Models & Related Products
Looking for the complete slide-out system or related components? Browse these verified Lippert products:
- Lippert Single Motor Slide-Out Control With Programmable Stops & Room Locks (#383703) — for single-motor systems
- Lippert Slide-Out Controller For 12VDC Reversible Gear Motor (#363987) — for gear motor systems
- Lippert RV Slide-Out 28:1 Venture Motor (#136373) — replacement slide motor
- Lippert 32" Slide-Out Room Actuator With 18:1 Venture Motor
- Lippert 24" Slide-Out Room Actuator With 18:1 Venture Motor
- Shop All Lippert Products
Frequently Asked Questions
How do I know if I need the dual motor or single motor slide control?
Check your existing control board label or your RV's wiring diagram. If your slide-out room uses two motors (one on each side of the room), you need the dual motor controller (#368819). If it uses one motor, see our single motor control (#383703).
Is the Lippert #368819 compatible with my RV?
This control is designed for Lippert dual-motor slide-out systems. Cross-reference part number 1510000121 or 1510000122 against your existing board to confirm compatibility. When in doubt, use our AI Live Chat for assistance.
How do I program the stops on this slide control?
Programmable stops are set by running the slide to the desired in/out position and pressing the set button on the control module. Refer to Lippert's installation guide included with the unit for step-by-step instructions.
What does the room lock function do?
The room lock feature electronically locks the slide-out in the retracted position while the RV is in transit, preventing accidental extension. It can also lock the slide in the extended position while parked for added stability.
How long does shipping take for the Lippert #368819?
This item ships via standard UPS ground. Most orders ship within 1-2 business days. Use our AI Live Chat for real-time availability and estimated delivery to your location.
Can I install this slide control myself?
Yes — the compact 12" x 8" x 2" form factor and lightweight 1 lb design make it accessible for experienced DIY RV owners. However, if you're unfamiliar with 12VDC wiring, professional installation is recommended.
Order the Lippert Dual Motor Room Slide Control #368819 today and get your RV slide working like new. Have questions about compatibility or installation? Use our AI Live Chat for expert assistance — available 24/7.
Original: $449.00
-65%$449.00
$157.15Product Information
