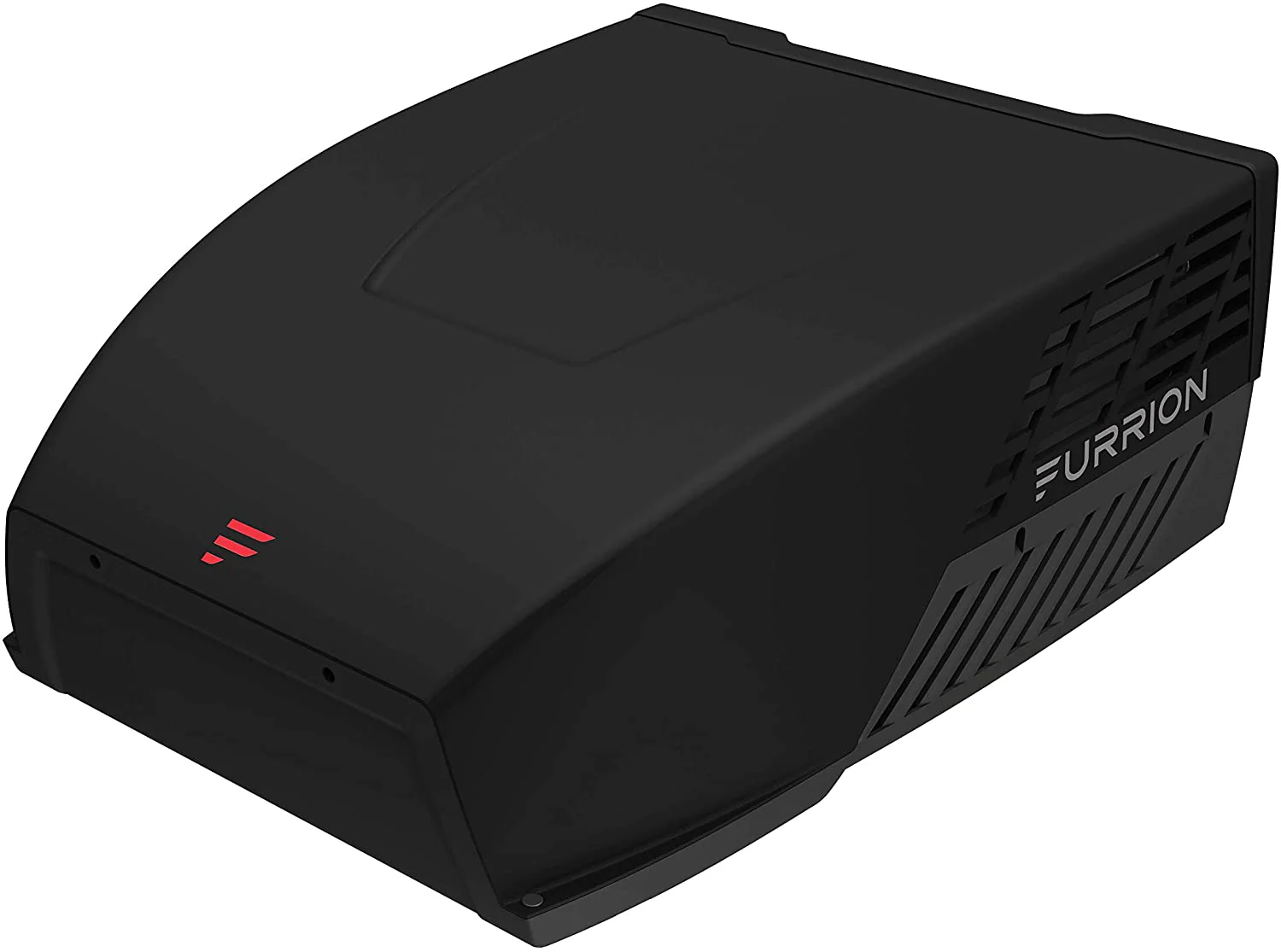

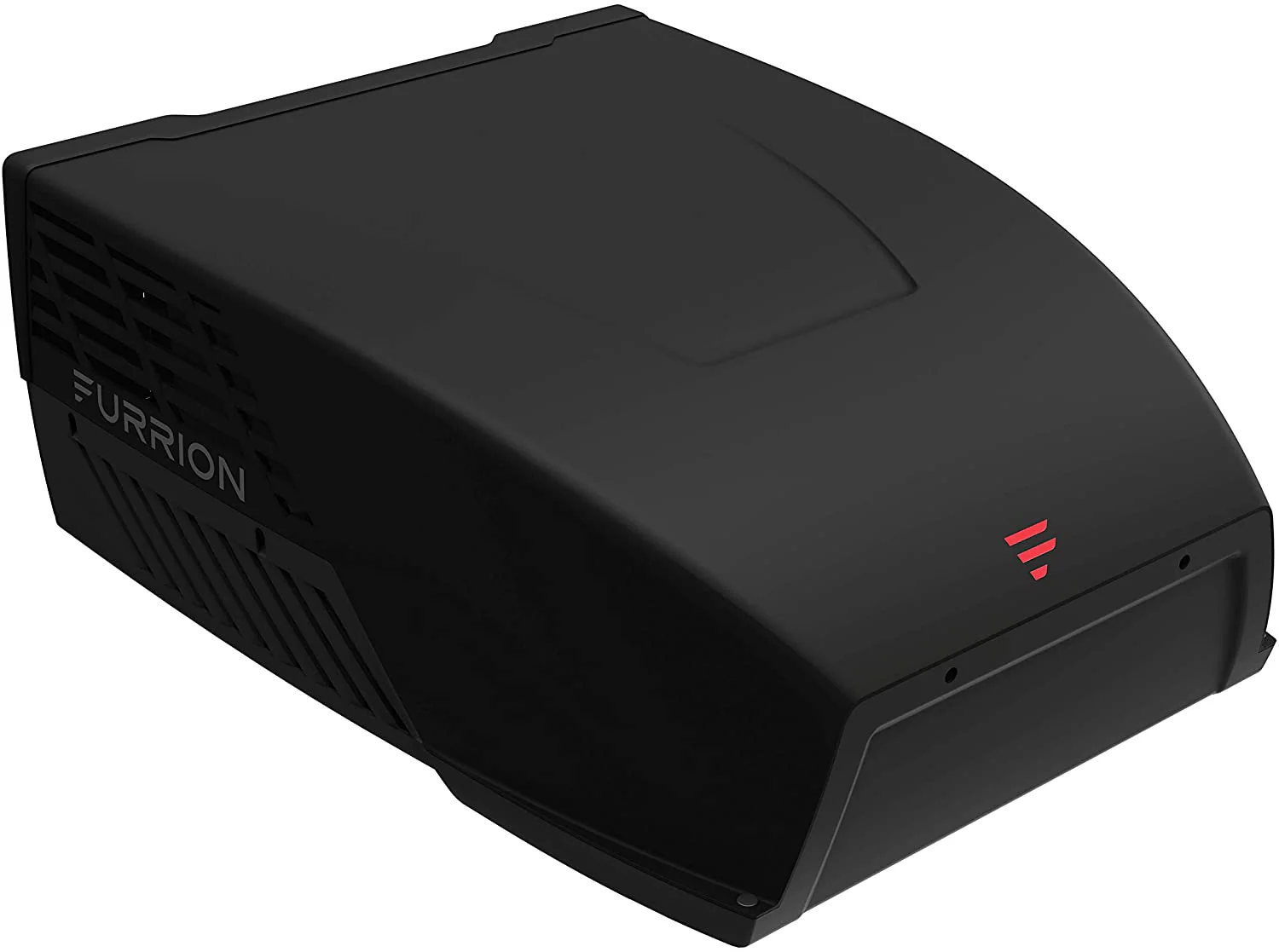

Furrion Chill® HE Rooftop RV Air Conditioner – 13.5K BTU, Black

The Furrion Chill® HE is a high-performance, high-efficiency rooftop A/C unit engineered for superior cooling in RVs and campers. Built with advanced dual-fan technology, a high-capacity compressor, and Furrion’s proprietary Climatesmart™ and Vibrationsmart™ features, it delivers powerful airflow, efficient operation, and rugged durability for the road.

🔧 Key Features

• 13,500 BTU Cooling Power – Rapidly lowers cabin temperature, even in extreme heat
• Dual-Fan Design – Optimized fan speed increases airflow and reduces heat buildup inside the unit
• High EER (Energy Efficiency Ratio): Rated at 213 for efficient performance and reduced power draw
• Low-Noise Operation: Engineered to operate up to 50% quieter than traditional single-fan models

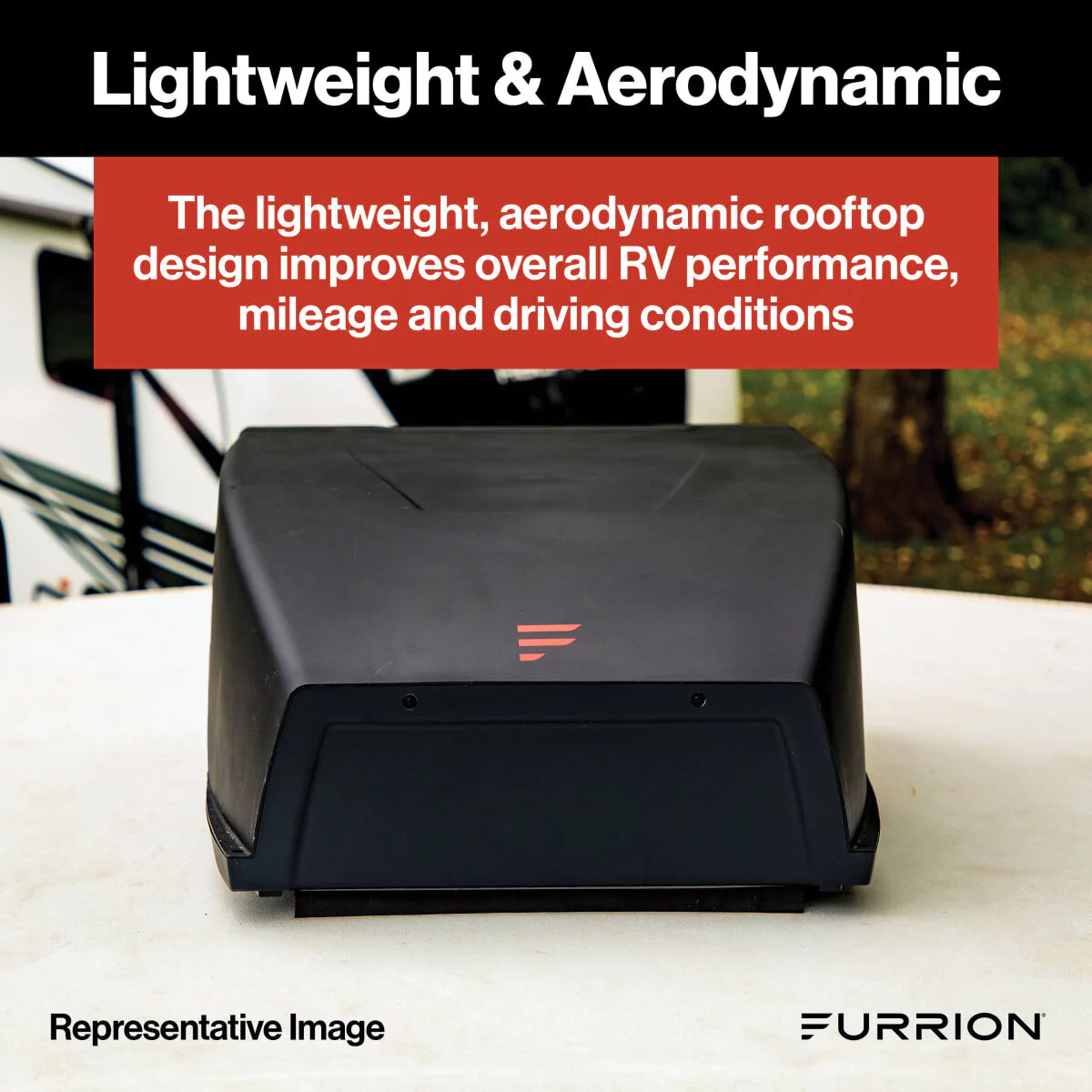

• Aerodynamic, Mid-Profile Housing: Minimizes drag for improved fuel efficiency

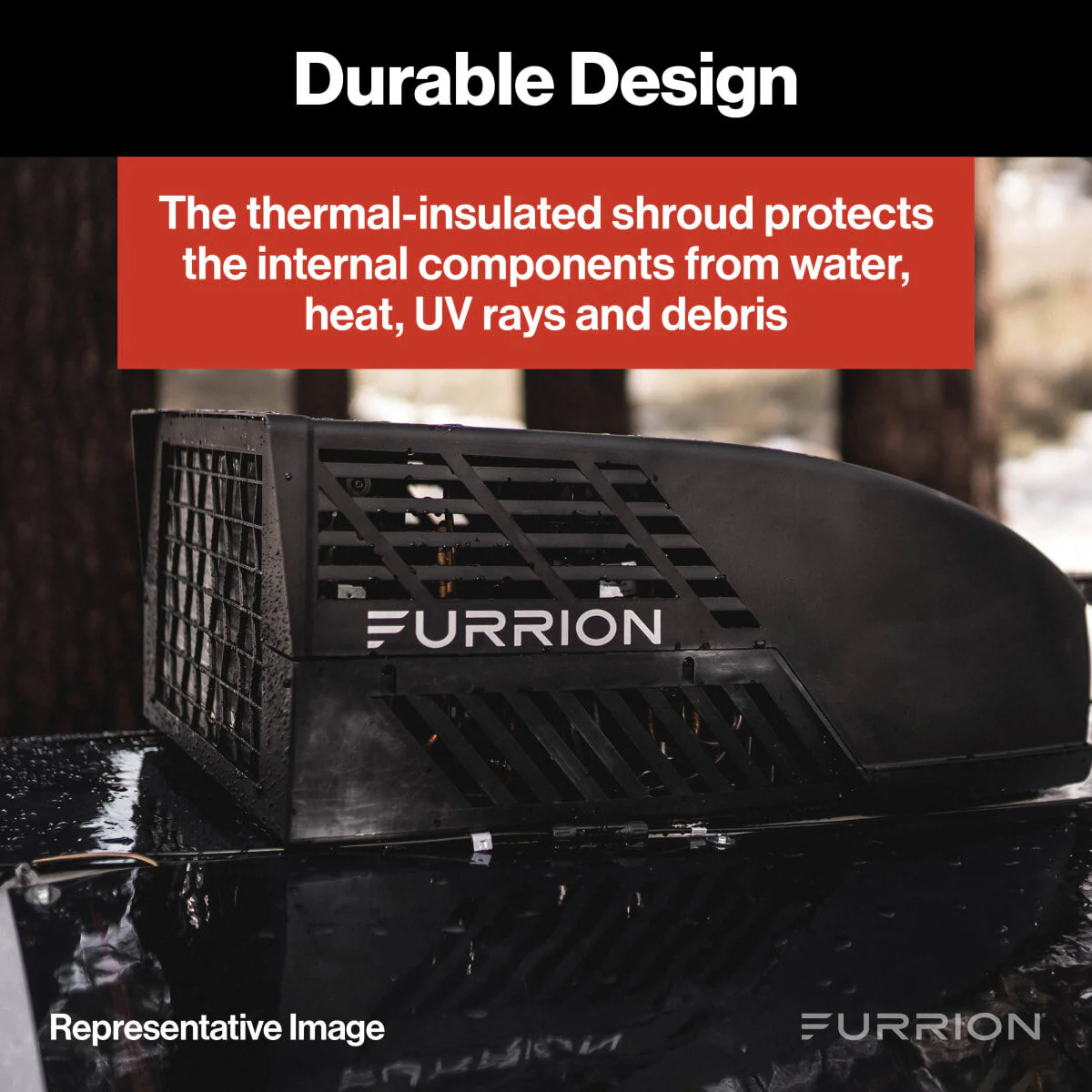

• Thermal-Insulated & UV-Resistant Shroud: Protects internal components from weather and heat
• Plastic Drip Pan: Corrosion-resistant and vibration-stable
• Vibrationsmart™ & Climatesmart™ Certified: Built to endure long-haul travel and extreme weather shifts

📦 What’s Included

• 1x Rooftop A/C Unit (Black, 13.5K BTU)
• Standard mounting hardware
• Installation manual

📐 Technical Specifications

Cooling Capacity:	13,500 BTU
Voltage:	115V
Frequency:	60 Hz
Phase:	1Ph
Refrigerant:	R410A
Energy Efficiency Ratio (EER):	213
Sound Pressure Level:	80 dB
Set Temperature Range:	60°F – 86°F
IP Rating:	IP24
Drop Test Standard:	6C
Unit Weight:	82 lbs

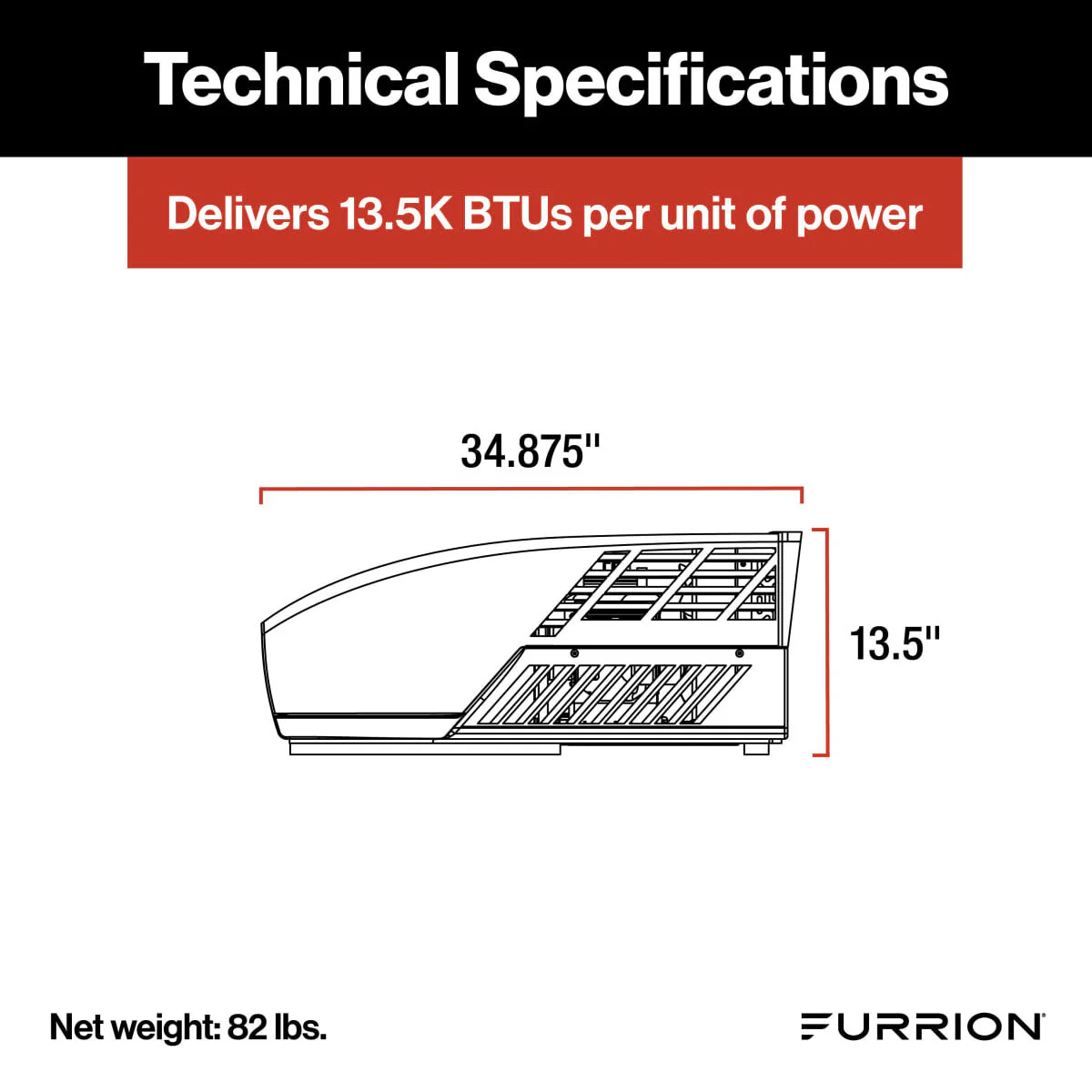

Dimensions (L x W x H):	27.5" x 34.875" x 13.5"
Furrion Part #:	FACR13HESA-BL

💡 System Compatibility

This rooftop unit is compatible with single-zone or multi-zone setups, depending on your RV's configuration. Please note:

• 🔧 Required Components (sold separately):
• Air Distribution Box (ADB)
• Controller
• Wall Thermostat
• ✅ Compatible with Furrion conversion kits for Dometic™, Coleman™, and Advent™ systems

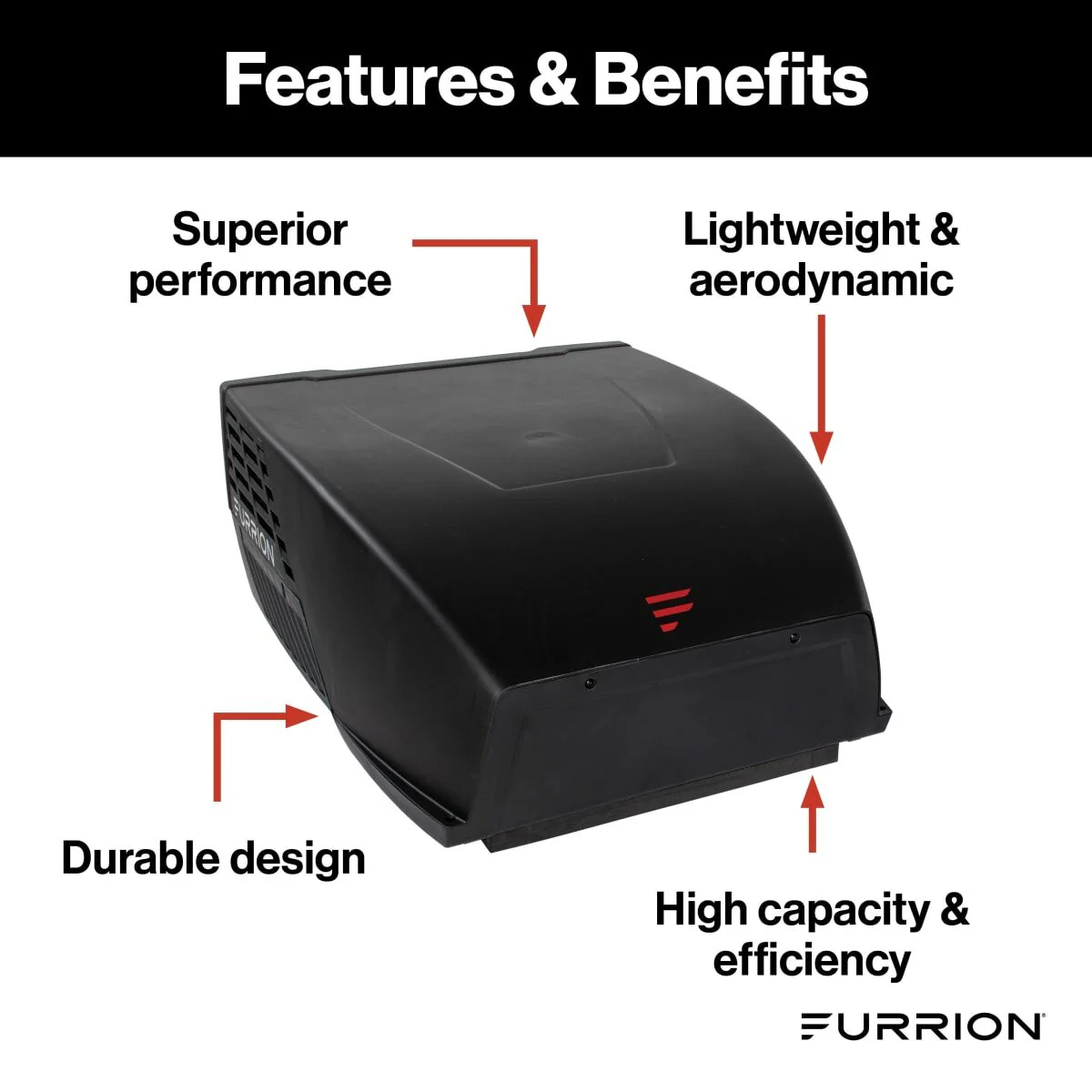

🖼️ Feature Highlights

High-Capacity Compressor

Engineered for faster cooling performance, the upgraded compressor delivers reliable, high-volume airflow — helping you reach your set temperature faster and maintain comfort even on the hottest days.

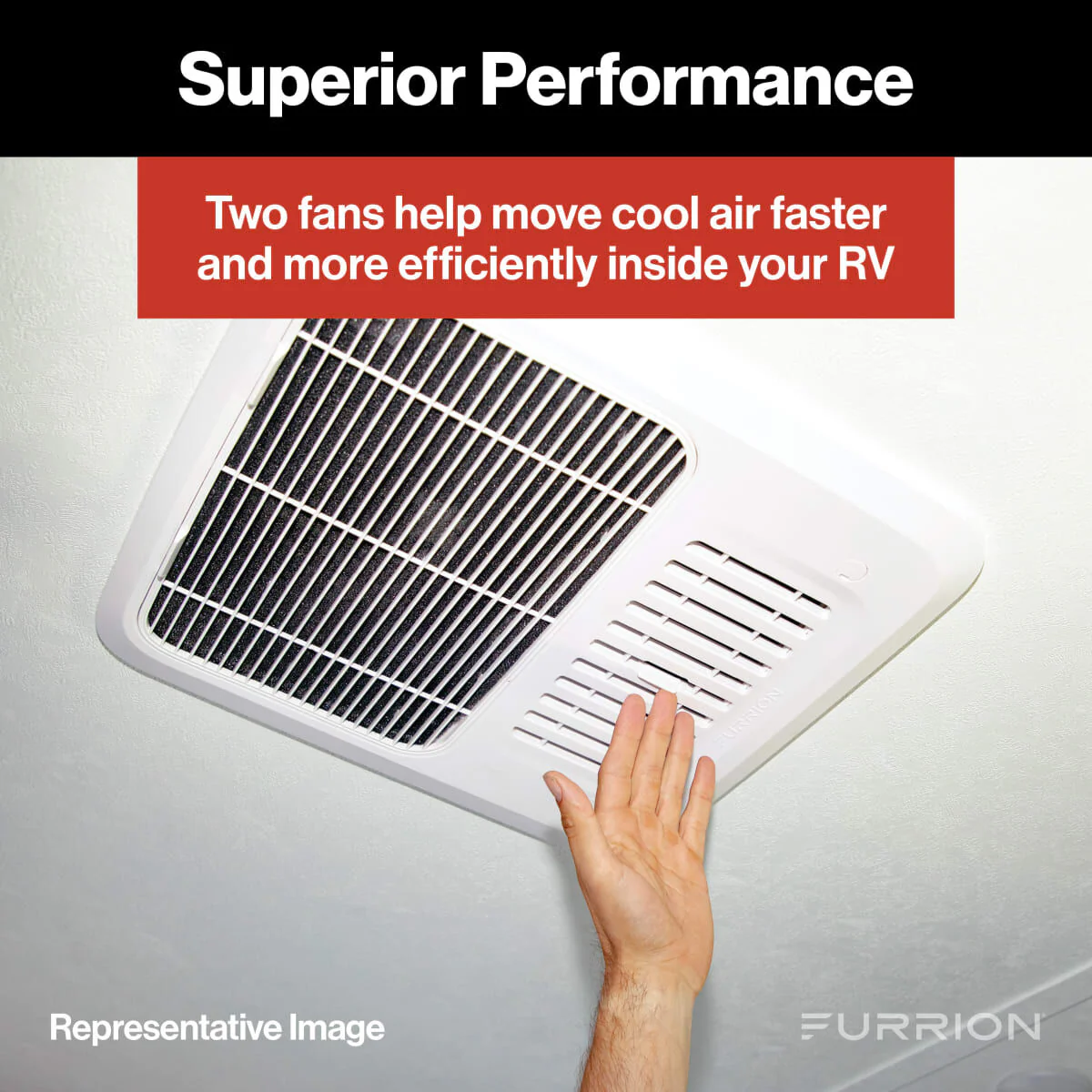

Dual-Fan System

The Chill HE's dual-fan layout optimizes internal airflow to reduce heat buildup and minimize noise. One fan targets the condenser while the other maintains internal temperature stability — improving lifespan and efficiency.

Energy-Efficient EER Rating

With an impressive 213 EER rating, this rooftop unit delivers more BTUs per watt, helping reduce your energy draw while keeping your space cool — especially important for off-grid and inverter-based systems.

UV-Resistant Shroud

The housing is made from UV- and weather-resistant materials designed to endure long-term exposure on the road. The aerodynamic shape also minimizes wind drag and contributes to better fuel efficiency.

Thermostat Compatibility

Compatible with Furrion's single- and multi-zone thermostats (sold separately), this unit integrates seamlessly with your RV’s climate system — offering control over fan speed, temperature, and mode from one interface.

❓ Frequently Asked Questions

• What size RV is this A/C suitable for?
  It's ideal for mid-sized RVs, trailers, and fifth wheels up to ~30 feet.
• Can I install this unit myself?
  Yes, if you're experienced with RV roof systems and wiring. Otherwise, professional installation is recommended.
• What controller or thermostat do I need?
  You must pair this unit with a compatible Furrion controller and wall thermostat (sold separately).
• Is it compatible with other brands?
  Yes. Furrion offers adapter kits to replace select Dometic™, Coleman™, and Advent™ rooftop A/C units.
