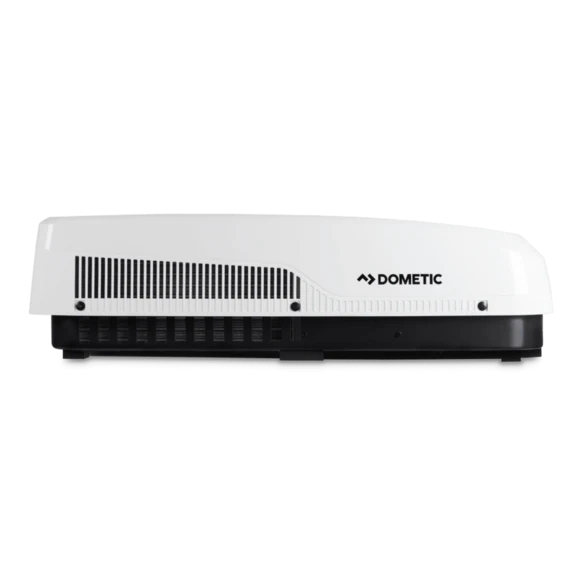

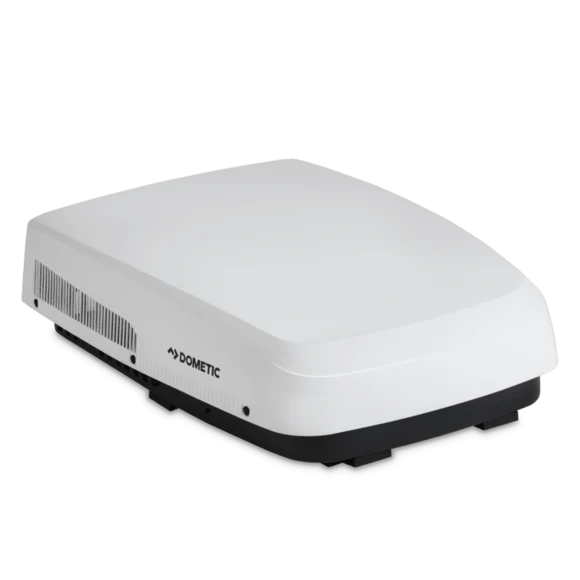

Dometic - FreshJet 5 Series 15,000 BTU Low-Profile Electronic RV Air Conditioner with Heat Pump - White - Part# 9620017216
1 / 7
Dometic - FreshJet 5 Series 15,000 BTU Low-Profile Electronic RV Air Conditioner with Heat Pump - White - Part# 9620017216
FreshJet 5 Series
Dometic - FreshJet 5 Series 15,000 BTU Low-Profile Electronic RV Air Conditioner with Heat Pump - White - Part# 9620017216
Part #9620017216
15,000 BTUElectronic controlsStandard 14" x 14" RV roof openingHeat pump + electronic
This is the FreshJet 5 for buyers who want low-profile 15K cooling, heat-pump functionality, and an electronic control architecture rather than a simpler mechanical setup.
What this is
Main rooftop unit listing, not a trim piece or service part.
Roof fit
Standard 14" x 14" RV roof opening
Controls
Electronic controls
Best fit
Buyers replacing a more integrated electronic system or building a cleaner premium setup with matched electronic controls.
What is included vs. what you still need
Included with this listing
- Main rooftop air conditioner unit
- Roof gasket / mounting interface if supplied by Dometic with this rooftop package
- Factory literature / warranty material
- Interior ceiling assembly, return-air box, and thermostat are typically separate unless the listing title specifically says otherwise
Usually still required
- Correct inside air distribution / return-air components for your exact layout
- Thermostat or control package that matches the rooftop unit type
- Install hardware and sealing items your coach may need during replacement
- Verification that your existing wiring and roof opening match this platform
Ducted vs. non-ducted compatibility
FreshJet rooftop units can be used in ducted or non-ducted RV applications, but the inside components are different. Ducted installs tie into your existing ceiling duct network, while non-ducted installs need a compatible interior air distribution box that delivers air directly into the cabin.
- Ducted setup: best when your RV already uses ceiling ducts and you want conditioned air distributed through the coach.
- Non-ducted setup: best when you need the interior air box to deliver air directly from the ceiling assembly into the living space.
- Key point: the rooftop unit may fit the roof opening, but the inside components still have to match your application.
Thermostat / ADB / return-air guidance
Requires a compatible electronic return-air / air distribution box and thermostat or control package. Do not assume a mechanical ceiling kit will interchange.
- Do not assume your old ceiling assembly automatically crosses over just because the roof opening is the same.
- When replacing an older rooftop unit, confirm the inside plenum, return-air grill, control board, and thermostat strategy before you buy.
- Heat pump models can add electric heat in mild weather, but they are not a substitute for a furnace in deep-cold conditions.
Fitment and install checklist
- Measure the roof cutout before ordering.
- Confirm whether the coach is ducted or non-ducted.
- Verify you are ordering the correct control style: mechanical vs. electronic.
- Check roof thickness, wiring condition, and whether the old gasket / mounting hardware should be replaced.
- On replacement jobs, confirm the old unit family so you do not end up short on inside components.
Why buyers choose this one
This is the FreshJet 5 for buyers who want low-profile 15K cooling, heat-pump functionality, and an electronic control architecture rather than a simpler mechanical setup.

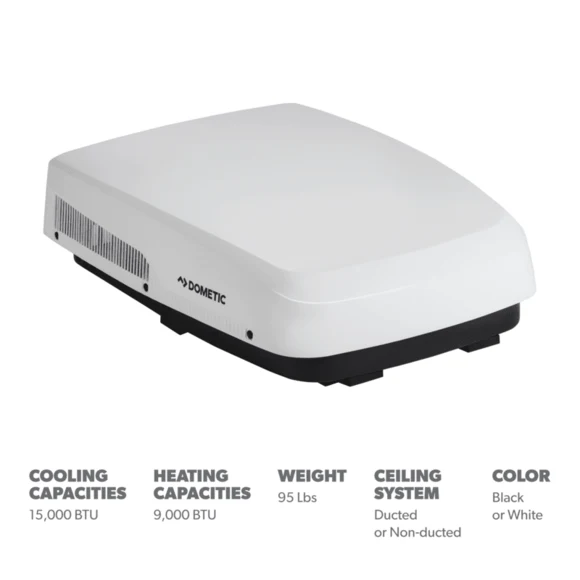

Specifications
| Part Number | 9620017216 |
| Series | FreshJet 5 Series |
| Color | White |
| Cooling / Output | 15,000 BTU |
| Control Type | Electronic controls |
| Fitment | Standard 14" x 14" RV roof opening |
| Dimensions | 40.39" L x 29.21" W x 10.5" H |
| Approx. Weight | Approx. 95 lbs |
| Electrical | 115V AC |

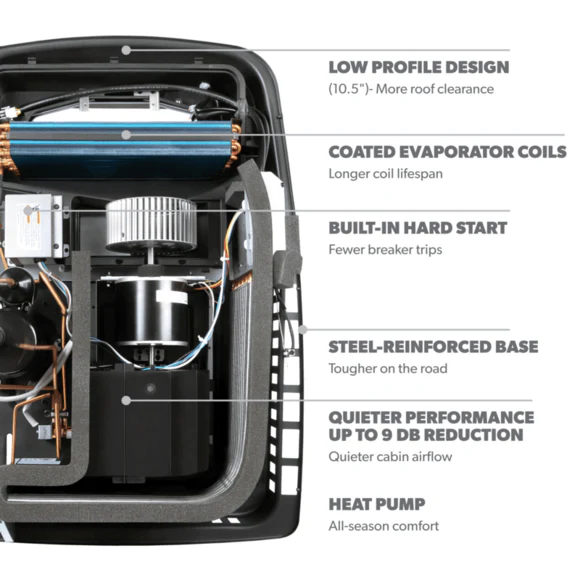

Exploded-view / service reference
We keep service-reference imagery on these pages because it helps buyers, installers, and future service work.
Compatible components for this rooftop unit
Rooftop-only purchase
- This listing is the outside rooftop unit only.
- This is an electronic-control FreshJet 5 heat-pump model, so it should be matched to the electronic control family, not a mechanical ceiling kit.
Full-system path
- New-install thermostat path: Dometic Connect Essential Thermostat - Part# 4471011652.
- Penguin II replacement / adapter path: RJ11 to RJ45 Adapter Kit - Part# 9610008210.
- Important: Dometic also references a matching Connect Essential CMC thermostat for some replacement paths, but we are not linking one here until we can verify the exact active sellable SKU.
Shipping / delivery note
Large rooftop A/Cs are freight-sensitive purchases. We keep the listing clear so you can confirm fitment before the order ships, and if you want a second set of eyes on the install pieces, ask us before checkout.
Need help matching the rooftop unit to the inside pieces?
Send us your existing model info, whether your coach is ducted or non-ducted, and whether you need mechanical or electronic controls. We can help you narrow the right Dometic setup before you order.
Send us your existing model info, whether your coach is ducted or non-ducted, and whether you need mechanical or electronic controls. We can help you narrow the right Dometic setup before you order.
