Alpha VR16366HBLANK RV Holding Tank - 9.5 Gallon Compact Black Water Storage

The Alpha VR16366HBLANK holding tank delivers reliable 9.5-gallon black water storage capacity with OEM-grade rotational molded construction. This compact 36" x 16" x 6" holding tank features seamless one-piece design, leak-tested quality assurance, and blank configuration perfect for small RVs, pop-up campers, and compact travel trailers.

Why Choose the Alpha VR16366HBLANK Holding Tank?

Alpha's VR16366HBLANK holding tank solves the challenge of replacing worn or damaged waste tanks in compact RVs with authentic OEM-quality construction. The 9.5-gallon capacity provides adequate black water storage for weekend trips in small campers, while the rotational molded seamless design eliminates weak points and potential leak areas found in welded tanks.

At 36" long, 16" wide, and only 6" tall, this is one of Alpha's most compact holding tanks, perfect for tight spaces in pop-up campers, small travel trailers, and van conversions. The low 6" profile allows installation in shallow compartments where taller tanks won't fit.

Key Features and Specifications

• Capacity: 9.5 gallons black water storage

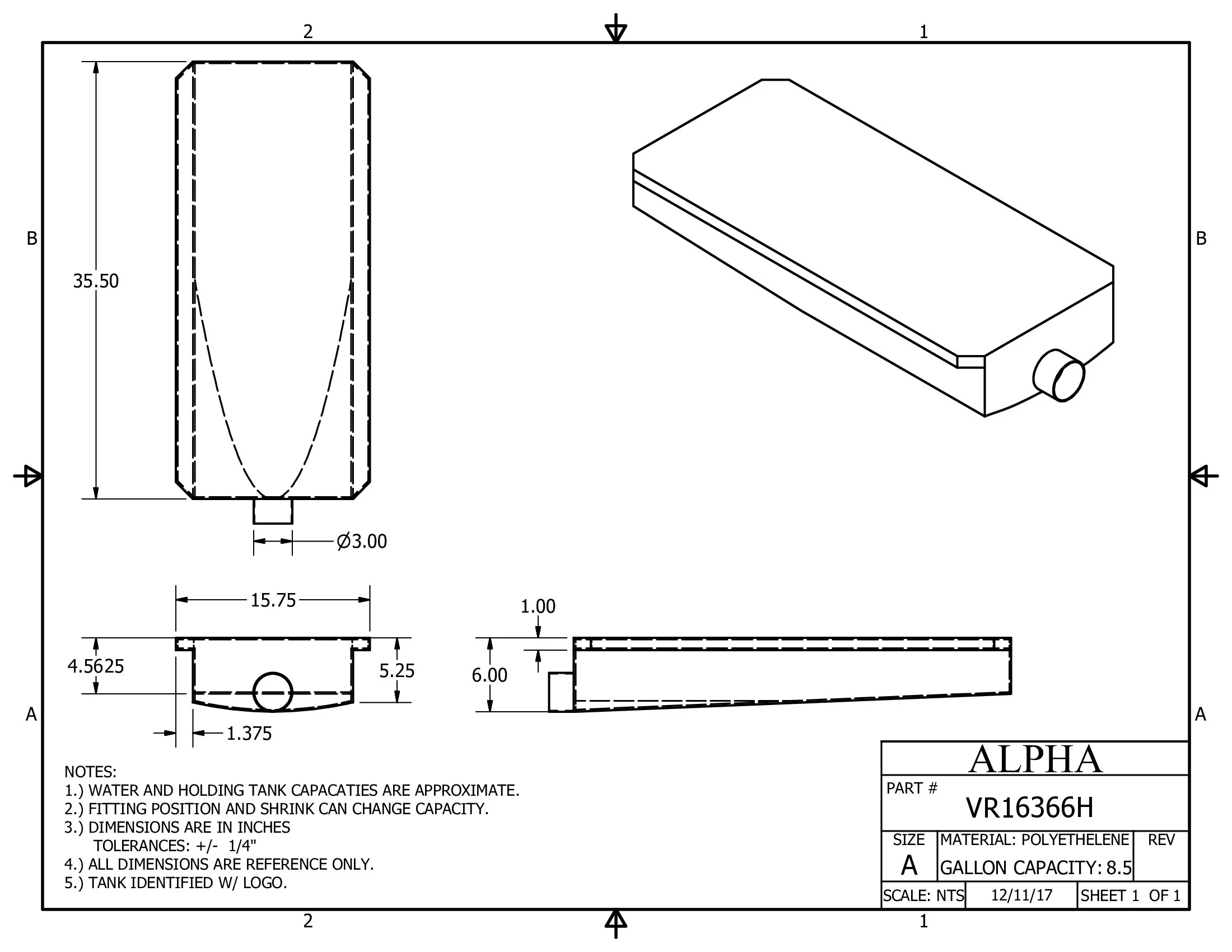

• Dimensions: 36" length x 16" width x 6" height
• Drain Orientation: Standard configuration
• Configuration: Blank (no pre-installed fittings)
• Construction: Rotational molded seamless one-piece design
• Material: High-density polyethylene (HDPE)
• Part Number: VR16366HBLANK
• Manufacturer: Alpha
• Quality Testing: 100% leak-tested before shipping
• Grade: OEM quality - same tanks used in new RV builds

Perfect For These Applications

The compact 36" x 16" x 6" size with 9.5-gallon capacity makes the VR16366HBLANK ideal for:

• Pop-up camper black water tank replacement
• Small travel trailer waste tank upgrades
• Van conversion holding tank installations
• Compact Class B motorhome applications
• Teardrop trailer waste systems
• Weekend camping rigs with limited space
• Replacement for damaged or leaking compact tanks
• Applications requiring shallow 6" height profile
• Small RVs with tight tank compartment clearances

Compact Design - Perfect for Small Spaces

The VR16366HBLANK features a compact 6" height profile, making it ideal for shallow compartments where standard tanks won't fit. This allows you to:

• Install in pop-up campers with limited vertical clearance
• Fit in van conversions with shallow under-floor spaces
• Replace tanks in compact travel trailers
• Maximize storage space in small RVs
• Maintain adequate waste capacity without sacrificing space

Note: Professional installation recommended. You'll need to drill and install appropriate fittings, gaskets, and hardware based on your RV's plumbing system.

Compare Similar Alpha Holding Tanks

Helpful Tip: When selecting a compact holding tank, measure your RV's tank compartment carefully including height clearance. The VR16366HBLANK's 6" height makes it ideal for shallow spaces where taller tanks won't fit.

Installation and Compatibility

This holding tank ships as a blank unit requiring professional installation. You'll need to:

• Verify tank dimensions fit your compartment (36" L x 16" W x 6" H minimum)
• Drill appropriate holes for drain outlet, vent, and sensor fittings
• Install gaskets and threaded fittings with proper sealant
• Connect to existing RV plumbing system
• Secure tank with appropriate mounting straps or brackets
• Test all connections for leaks before use

Professional installation strongly recommended. Improper installation can lead to leaks, odors, and system failures.

What Makes Alpha Holding Tanks Superior?

Alpha has built a reputation for engineering excellence in the RV industry. Their holding tanks feature:

• Rotational Molded Construction: Seamless one-piece design eliminates weak points and potential leak areas
• OEM Quality Standards: Same tanks used by major RV manufacturers in new builds
• 100% Leak Testing: Every tank is individually submerged and tested before shipping
• High-Density Polyethylene: Superior chemical resistance and durability for waste applications
• Compact Design Options: Perfect for small RVs and tight spaces
• Strict Quality Control: Manufactured to meet all health and safety requirements
• Built for RV Life: Designed to withstand constant movement, vibration, and temperature changes
• Long Service Life: Durable construction provides years of reliable performance

Frequently Asked Questions

What is the capacity of the VR16366HBLANK holding tank?

The Alpha VR16366HBLANK holding tank has a 9.5-gallon capacity for black water storage. This provides adequate waste storage for weekend trips in compact RVs, pop-up campers, and small travel trailers.

What are the dimensions of the VR16366HBLANK?

The VR16366HBLANK measures 36" long x 16" wide x 6" tall. The shallow 6" height profile makes it ideal for tight spaces and shallow compartments where taller tanks won't fit.

Is this tank leak-tested?

Yes, every Alpha VR16366HBLANK holding tank is individually submerged and leak-tested before shipping. This rigorous quality control ensures you receive a reliable, problem-free tank ready for installation.

Will this fit my pop-up camper?

The VR16366HBLANK is designed for compact RVs including pop-up campers. Measure your tank compartment carefully - you need at least 36" length x 16" width x 6" height, plus clearance for fittings and connections. The shallow 6" profile is perfect for pop-up campers with limited vertical space.

What does blank configuration mean?

Blank configuration means the tank has no pre-installed fittings. You have complete flexibility to drill and install drain outlets, vent fittings, and sensor ports exactly where your RV's plumbing system requires them. This is ideal for custom installations and replacement applications.

Do I need professional installation?

Yes, professional installation is strongly recommended. Installing a holding tank requires drilling precise holes, installing fittings with proper gaskets and sealant, connecting to plumbing systems, and thorough leak testing. Improper installation can lead to serious problems including leaks and odors.

Is 9.5 gallons enough capacity?

For weekend camping trips in compact RVs, 9.5 gallons provides adequate capacity for 2-3 people. For longer trips or larger groups, you may need to dump more frequently or consider a larger capacity tank if your RV has space.

Can I use this in a van conversion?

Yes! The VR16366HBLANK's compact dimensions (36" x 16" x 6") make it perfect for van conversions where space is limited. The shallow 6" height allows installation in under-floor compartments with minimal clearance.

Authentic Alpha Parts from Elkhart RV Parts

When you order the VR16366HBLANK from Elkhart RV Parts, you receive 100% authentic Alpha products backed by our commitment to quality. We are an authorized Alpha dealer, ensuring you receive genuine OEM-grade parts with full manufacturer quality standards.

Our team understands RV holding tank systems and can help you select the right tank size for your specific application. Have questions about sizing, installation, or compatibility? Use our AI Live Chat for expert product guidance and technical support.

Order Your Alpha VR16366HBLANK Compact Holding Tank Today

Replace your worn or damaged RV holding tank with the reliable Alpha VR16366HBLANK compact holding tank. With 9.5-gallon capacity, shallow 6" profile, rotational molded construction, and 100% leak-tested quality, this holding tank delivers the OEM-grade performance you need for years of trouble-free RV adventures in your compact camper.

Ships via freight. Order now for fast delivery of your authentic Alpha holding tank.
