The Uniseal Warehouse - 1/2" Uniseal Grommet - White - PVC Schedule 40 Pipe Tank Fitting - 1-1/4" Hole Saw - U050-W
The Uniseal Warehouse - 1/2" Uniseal Grommet - White - PVC Schedule 40 Pipe Tank Fitting - 1-1/4" Hole Saw - U050-W

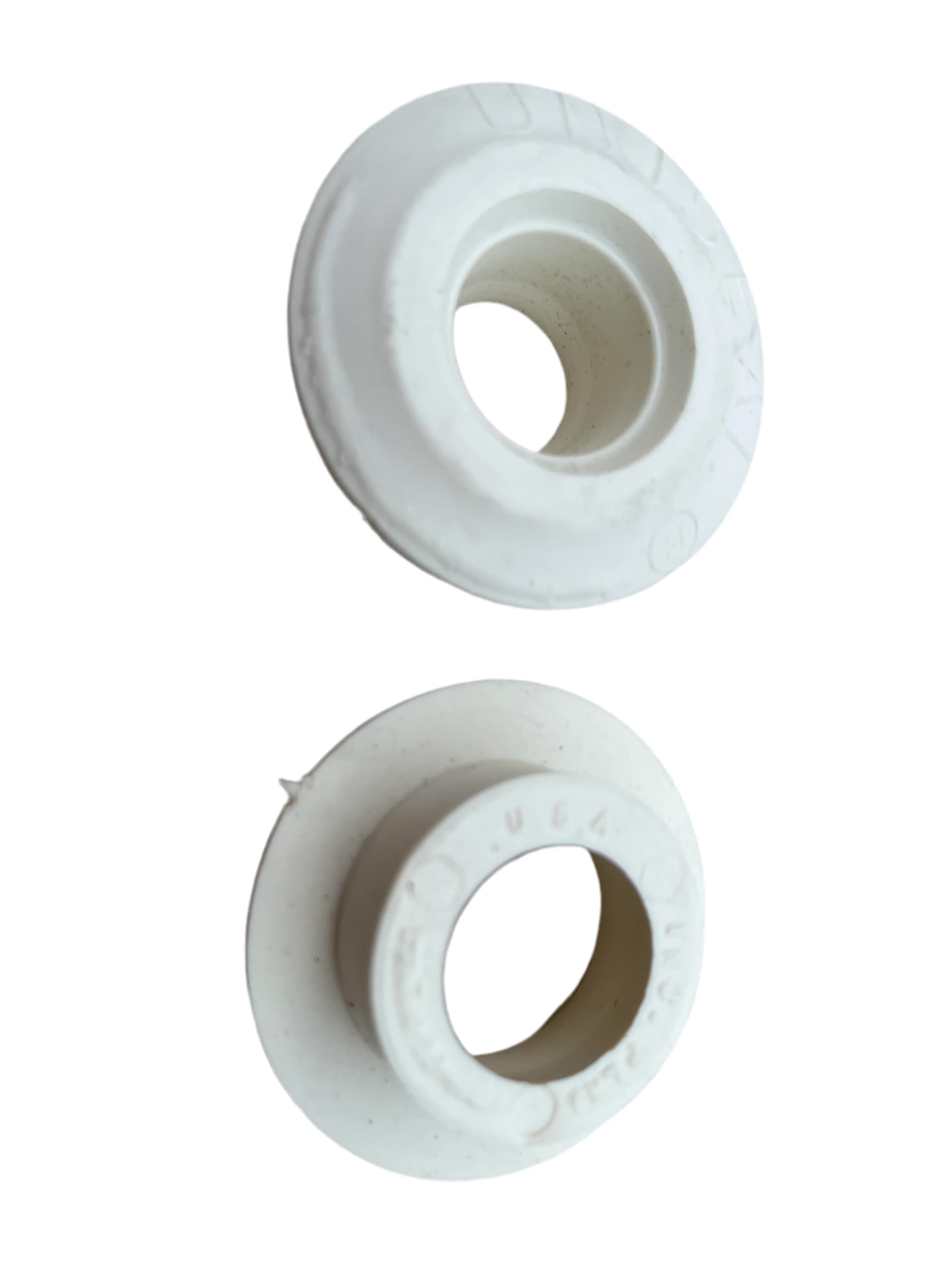

The 1/2" Uniseal Grommet White (U050-W) by The Uniseal Warehouse is the go-to solution for creating a permanent, leak-proof connection between 1/2" PVC Schedule 40 pipe and your RV holding tank. No adhesives, no mess — just a reliable compression seal that lasts.
Features & Specifications
- Pipe ID (Inner Diameter): 1/2" (13mm)
- Pipe OD (Outer Diameter): 0.84" (21mm)
- Required Hole Saw Size: 1-1/4" (32mm)
- Maximum Wall Thickness: Up to 3/8" (9mm)
- Material: UV-Resistant Thermoplastic Elastomer
- Compatible Pipe: PVC Schedule 40
- Country of Origin: Made in USA
- Sold: Individually (Each)
Why Choose the U050-W Uniseal Grommet?
The 1/2" Uniseal Grommet U050-W uses a proven compression-seal design — simply push your PVC pipe through the grommet and it creates a watertight seal without any glue or sealant. The UV-resistant thermoplastic elastomer construction ensures long-term durability even in harsh outdoor RV environments.
Whether you're plumbing a fresh water tank, grey water tank, or black water holding tank, the U050-W Uniseal fitting delivers a professional-grade seal that holds up season after season. It's the same fitting trusted by RV manufacturers and repair shops nationwide.
Compare 1/2" vs 2" Uniseal Grommets
Not sure which size Uniseal grommet is right for your application? Use this comparison to find the correct fit for your pipe size and tank wall.
| Model | Pipe ID | Pipe OD | Hole Saw Size | Max Wall Thickness | Best For | View Details |
|---|---|---|---|---|---|---|
| U050-W (This Product) | 1/2" (13mm) | 0.84" (21mm) | 1-1/4" (32mm) | 3/8" (9mm) | Small-diameter pipe connections, sensors, vents | Current Page |
| U200-W | 2" (50mm) | 2.375" (60mm) | 3" (76mm) | 3/8" (9mm) | Main drain/fill lines, larger tank connections | View U200-W |
Tip: Always measure your pipe's outer diameter (OD) — not the nominal pipe size — to confirm the correct Uniseal grommet size before ordering.
Technical Specifications
- Part Number: U050-W
- Pipe Compatibility: PVC Schedule 40, 1/2" nominal pipe
- Pipe Inner Diameter: 1/2" (13mm)
- Pipe Outer Diameter: 0.84" (21mm)
- Required Hole Saw: 1-1/4" (32mm)
- Maximum Tank Wall Thickness: 3/8" (9mm)
- Color: White
- Material: UV-Resistant Thermoplastic Elastomer
- Installation Method: Compression seal — no adhesives required
- Origin: Made in USA
- Unit: Sold individually (Each)
What's Included
- One (1) 1/2" Uniseal Grommet — White (U050-W)
- Manufacturer warranty against defects
Compatible Models & Alternatives
Need a larger pipe connection? The 2" Uniseal Grommet U200-W is the next size up and uses the same compression-seal technology for 2" PVC Schedule 40 pipe. Browse our full RV Tank Fittings collection for additional tank plumbing components.
Frequently Asked Questions
What hole saw size do I need for the U050-W Uniseal Grommet?
You'll need a 1-1/4" (32mm) hole saw to cut the correct opening in your tank for the U050-W grommet. After cutting, smooth any rough edges for the best seal.
Is the U050-W compatible with PVC Schedule 80 pipe?
The U050-W is designed and rated for PVC Schedule 40 pipe. While it may physically fit Schedule 80 pipe (which has the same OD), we recommend using it as specified with Schedule 40 for optimal sealing performance.
How do I install a Uniseal grommet?
Cut a 1-1/4" hole in your tank wall, smooth the edges, insert the grommet into the hole, then push your PVC pipe through the grommet. The compression seal forms automatically — no glue or sealant needed. Measure twice before cutting!
What is the maximum tank wall thickness for the U050-W?
The U050-W Uniseal Grommet accommodates tank walls up to 3/8" (9mm) thick, which covers the vast majority of RV polyethylene holding tanks.
Can I use this grommet for fresh water and waste water tanks?
Yes — the U050-W is suitable for use with both fresh water and waste/holding tanks. The UV-resistant thermoplastic elastomer material is safe for potable water applications.
Where can I buy the U050-W Uniseal Grommet?
ElkhartRVParts.com is an authorized retailer of The Uniseal Warehouse products. Order directly here for guaranteed authentic parts with fast shipping.
Why Buy from Elkhart RV Parts?
We are an authorized dealer of The Uniseal Warehouse, meaning every U050-W grommet you purchase from us is 100% genuine OEM-grade. We stock authentic parts, ship fast, and back every order with our 30-day return policy. Our team knows RV plumbing — we're here to make sure you get the right part the first time.
